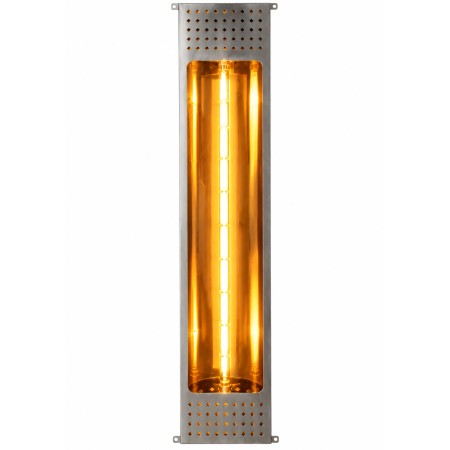

VitaeGold 350W – IR full-spectrum heater

VitaeGold 350W infrared heater for infrared saunas

VitaeGold heaters produce a broad spectrum of infrared heat across the IR-A, IR-B and IR-C wavelengths. Heaters that cover the entire infrared spectrum are known as full-spectrum heaters. This range of infrared wavelengths allows the heat to penetrate deeper into the body, providing an intense, comfortable and deep-penetrating sensation of warmth.

VitaeGold uses a yellow-coated reflector which directs the short IR-A rays more effectively towards the body, so that even less of the infrared rays are absorbed by the sauna walls.

The heater has a front panel made of bronze-coloured ceramic glass, the surface of which can become very hot. You must therefore always ensure that there is a permanently fixed backrest or protective screen in front of the VitaeGold heater. If you are making your own backrest, it should be sparsely constructed and cover no more than 50 per cent of the heating surface to ensure optimal heat distribution. The backrest should be positioned 2–4 cm away from the heater. If the heater is positioned beneath the bench or on the sides of the infrared sauna, a protective cover should also be fitted in front of the heater in accordance with the same recommendations as for backrests.

The heating experience provided by a VitaeGold heater is intense and penetrating. If you wish to adjust the heat intensity as required, we recommend connecting the heater to an IR dimmer.

An infrared sauna can be built using only Vitaelight reflectors or in combination with Mica Wave panels; choose the combination that works best for your particular infrared sauna.

When building an infrared sauna, the heaters should be positioned as close as possible to the body to ensure even and efficient heat distribution. VitaeGold is primarily intended to be positioned behind the back of each seat, but can also be fitted on the sides or beneath the bench.

PRODUCT SPECIFICATION	LW-VLG350
Vitaelight Infrared Heater
Height	700 mm
Width	155 mm
Depth	28 mm
Material Specification
Heating systems	VitaGold
Effect	350 W
Materials	The VitaeGold tube is a quartz tube with a tungsten filament
	The tube is housed in a cassette with a ceramic glass front
	The cassette’s reflector is plated in real gold,
	with efficient heat distribution.
Connection cable	On the short side, a silicone-coated cable, 500 mm long
	IP-approved screw terminal, also known as a cable gland.
Ventilation	No
Humidity tolerance	85 per cent
Assembly
Metal fixings	It is fitted using metal brackets at the top and bottom
	on the cassette, 4 fixings in total
Built-in	The cassette is 2.8 cm deep and is designed for flush-fitting.
	A gap of 0.5 cm from the material behind is required
	Vp pipe diameter 25 mm, when installing connection cables
Essential accessories
Control system	VitaGold heaters must be connected to a control system
Dimmer (recommendation)	To adjust the intensity of the WhiteLight heaters
	we recommend connecting an IR dimmer
Alternative control systems
Basic	For infrared saunas with a maximum power of 3,680 W
Excellent	For infrared saunas with a maximum power of 15,000 W
Excellent for a combi sauna	For infrared saunas and traditional saunas
	with a maximum power of 22,000 W
Connection to the control system
Power cable	The Vitaelight heater is connected to
	power cable (2.5 m) for the control system
	Power cables are included with your order
Calculate the power requirement for the sauna
550 W per cubic metre	The sauna is mainly panelled with wood on the walls and ceiling
650 W per cubic metre	The sauna has more than 20 per cent glass or tiles on the walls
